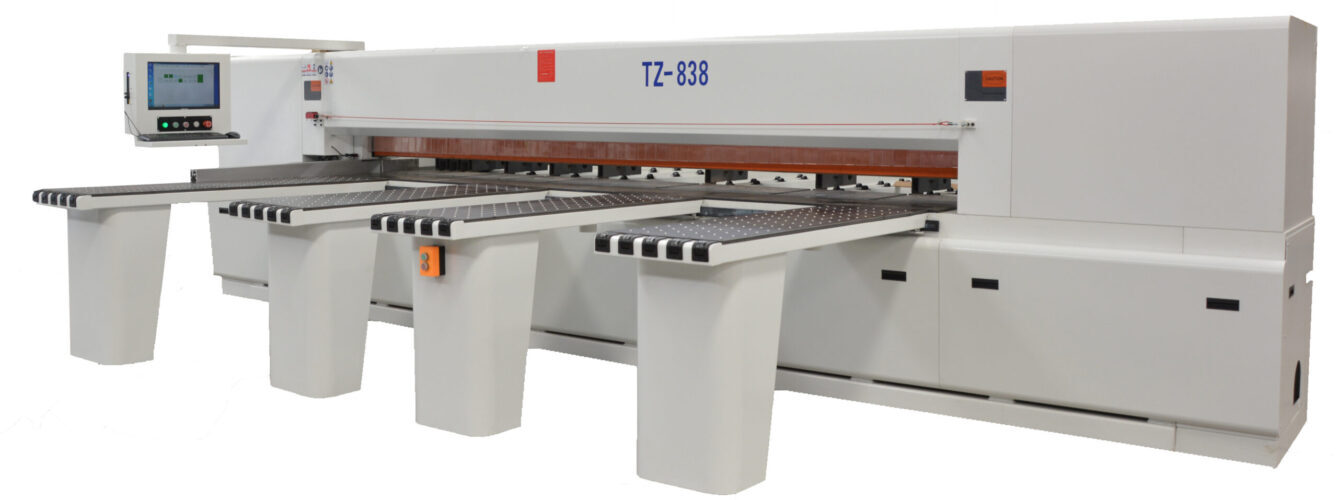

Perry Beam Model: TZ – 838

Specifications:

MAX.CUTTING LENGTH : 3800MM MAX.

CUTTING THICKNESS: 120MM

MAIN SAW BLADE MOTOR POWER: 11KW

OUTER / INNER DIA. OF MAIN SAW BLADE: 400MM / 60MM

REVOLVING SPEED OF MAIN SAW BLADE: 4260RPM

SCORING SAW BLADE MOTOR POWER: 2.2kw

OUTER / INNER DIA. OF SCORING SAW BLADE: 180MM/30MM

REVOLVING SPEED OF SCORING SAW BLADE: 7000RPM

CUTTING SPEED: 50MI/MIN

SERVO MOTOR POWER: 3.5KW

TURBING REDUCER POWER: 1.5KW

AIR PRESSURE: 0.6-0.8MPA

TOTAL POWER: 22.64KW(STANDARD)

OUTLINE SIZE: 5540x6425x1940mm

NET WEIGHT: 5000KG
